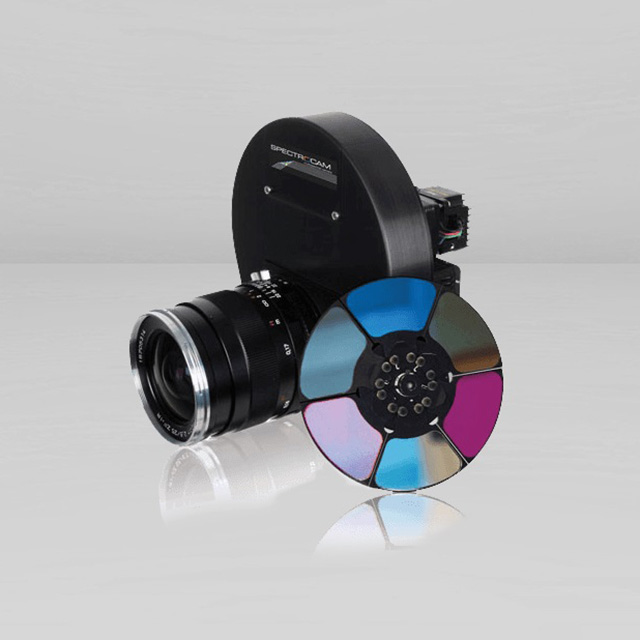

Torrent Photonics SpectroCam VIS-SWIR Multispectral Cameras

Updated:2025-03-13

Brand: Torrent Photonics
Model: SpectroCam VIS-SWIR
Description: The SpectroCam? SWIR 640 utilizes the Raptor Owl 640×512 InGaAs camera. This high-resolution multispectral camera allows users with the proper filters to see objects' reflected spectra from 500nm to 1
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Torrent Photonics SpectroCam VIS-SWIR Multispectral Cameras Description：

Datasheet

The SpectroCam? SWIR 640 utilizes the Raptor Owl 640×512 InGaAs camera. This high-resolution multispectral camera allows users with the proper filters to see objects' reflected spectra from 500nm to 1700nm.

Applications across multiple segments include medical imaging, surveillance, art conservation, and chemical remote sensing. The higher resolution allows for more pixels on target. Filter sets for specific applications exist.

Key Features

Sequential 6-8 band multispectral imaging

Full frame resolution at up to 25 frames/second

Interchangeable standard & custom spectral filters

Intuitive acquisition software

High-speed digital video output

OEM Customizations

Application-specific multispectral engine

Easy modular device integration

Optimized spectral bands & imaging

Proof of concept to high-volume production

Technical Specifications

Spectral Response	0.6μm to 1.7μm (600nm to 1700nm)
Resolution	640x512 px
Sensor	InGaAs 15μm Pixel Pitch
Spectral Bands	6 Filters
Active Area	7.68mm(H)x9.6mm(W) 12.29mm(D)
Frame Rate	120fps
Optical Interface	F-Mount Standard (Manual Aperture & Focus), Range of Lenses Available, Adapters Available Upon Request
Digital Output	Camera Link
Dimensions (No Lens or Mount)	136mm(H)x124mm(W)x105mm(D)
Weight	908g
