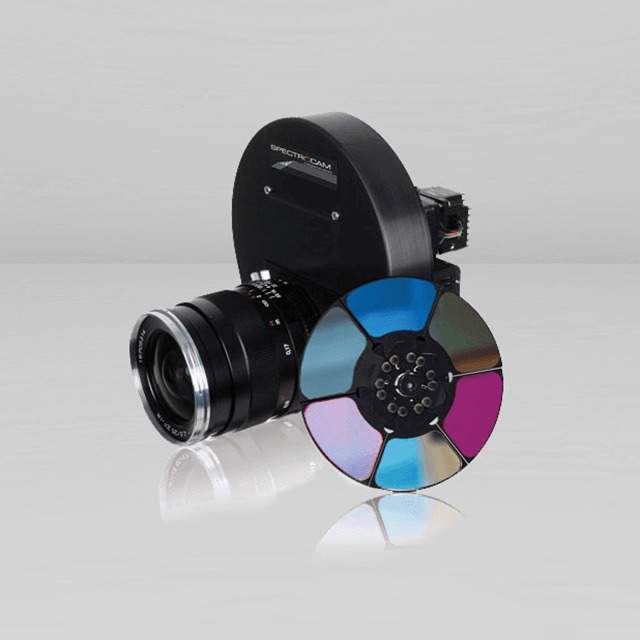

Torrent Photonics SpectroCam VIS-NIR Multispectral Cameras

Updated:2025-03-13

Brand: Torrent Photonics
Model: SpectroCam VIS-NIR
Description: The SpectroCam? Vis High Resolution utilizes the JAI 5MP GO Series CMOS camera. This high-resolution multispectral camera allows users with the proper filters to see objects' reflected spectra from 40
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Torrent Photonics SpectroCam VIS-NIR Multispectral Cameras Description：

Datasheet

The SpectroCam? Vis High Resolution utilizes the JAI 5MP GO Series CMOS camera. This high-resolution multispectral camera allows users with the proper filters to see objects' reflected spectra from 400nm to 1000nm.

Applications across multiple segments include medical imaging, food and agriculture sorting, process line inspection, and colorimetric imaging.

Key Features

Sequential 6-8 band multispectral imaging

Full frame resolution at up to 25 frames/second

Interchangeable standard & custom spectral filters

Intuitive acquisition software

High-speed digital video output

OEM Customizations

Application-specific multispectral engine

Easy modular device integration

Optimized spectral bands & imaging

Proof of concept to high-volume production

Technical Specifications

Spectral Response	400nm to 1000nm (VIS+NIR)
Resolution	2464x2056 px
Sensor	CMOS, Silicon, 5MP 3.45μm Pixel Pitch
Spectral Bands	8 Filters
Active Area	8.5mm(H)x 7.09mm(V) 11.1mm(D)
Frame Rate	22.7fps
Optical Interface	F-Mount standard (Manual Aperture & Focus), Range of Lenses Available, Adapters Available Upon Request
Digital Output	Gig-E Vision
Dimensions (No Lens or Mount)	136mm(H)x124mm(W)x105mm(D)
Weight	680g
