PixelCam Snapshot Datasheet PixelCam 9-Band SWIR Datasheet
PixelCam? multispectral cameras provide live imaging of 3 to 9 spectral bands, off-the-shelf or custom, at video rates. Simultaneous multichannel “snapshot” acquisition delivers rich, real-time data without scene change or pixel shift.
Custom dichroic filter arrays are integrated into the focal plane array at wafer level to create robust linear and area sensors that extract high-contrast spectral information at specific visible and infrared wavelengths.
This breakthrough technology enables easy integration into handheld, mobile, and aerial cameras – all with the same frame rate, size, weight, and power consumption as monochrome cameras.
Custom VIS-NIR-SWIR Spectral Bands
Portable Size, Weight, and Power Consumption
Robust, High Reliability, Scalable Production
Applications
Aerial Mapping
Biomedical Imaging
Machine Vision
Product Screening
Remote Sensing
Unmanned Systems
Surveillance and Authentication
OEM Customization
Application-Specific Spectral Bands
Custom Pixel-Scale Mosaic Patterning
Mechanical and Environmental Requirements
Proof-of-Concept Prototypes to High-Volume Production
Sensor, Camera, and Housing Options
Product Highlight

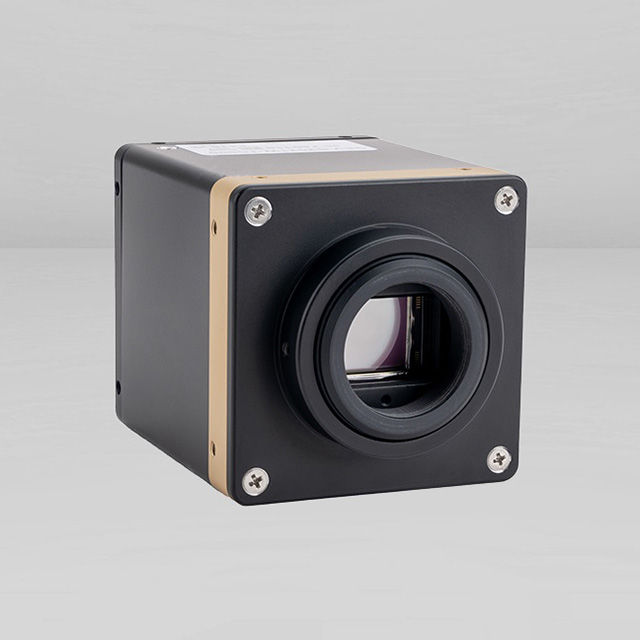

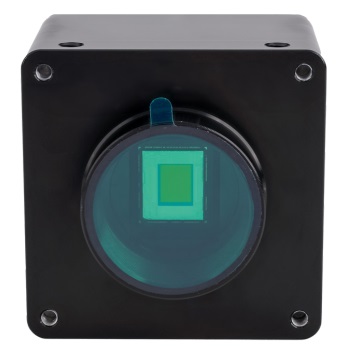

PixelCam? 9-Band SWIR camera
Discerns Between 9 Distinct Spectral Ranges from 1000nm to 1700nm
The PixelCam? 9-Band SWIR camera utilizes the latest developments in high-performance SWIR (Short Wave Infrared) image sensors. It combines Torrent’s patented pixelated filters to create a multispectral imaging system capable of discerning 9 distinct spectral ranges between 1000nm and 1700nm.
This opens the door to a wide range of applications where distinguishing the different SWIR “colors” enables identification of other subjects much more clearly. Using the SWIR spectrum enables deeper penetration into certain substances and even the ability to see right through them when a visible image would be occluded or even completely opaque
Technical Specifications
| 4MP VIS+ NIR | 56MP VIS+ NIR | Commercial / Scientific SWIR | Security & Defense SWIR | |
| Spectral Response | 400nm to 1000nm | 400nm to 1000nm |
0.9μm to 1.7μm (900nm -1700nm) |
0.9μm to 1.7μm (900nm to 1700nm) |
| Resolution | 2072x2072 px | 8424x6032 px | 1280x1024 px | 640x512 px |
| Sensor |
Si Interline
CCD 7.4μm Pixel Pitch |
Si Area
CMOS 4.6μm Pixel Pitch |
InGaAs 5μm Pixel Pitch |
InGaAs 15μm Pixel Pitch |
| Filter Resolution |
14.8μm Pixel
Pitch Binned 2x2 |
13.8μm Pixel Pitch Binned 3x3 |
15μm Pixel Pitch Binned 3x3 |
15μm Pixel Pitch Binned 3x3 |
|
Spectral Bands *Custom Spectral Bands Available on Request |
4 Band: RG B + NIR 450/100, 550/100, 650/100, 750LP 6 Band: RG B + 3xNIR 450/100, 550/100, 650/100, 740/60, 840/60, 940/60 |
9
Band 410/15,450/40,530/40, 575/20,610/20,650/25, 720/40, 790/20,850/40 |
4 Band 1120SP (900 -1120nm), 1220/70,1380/80, 1530LP |
4 Band 1120SP (900 -1120nm), 1220/70, 1380/80, 1530 LP |
| Active Area |
15.2mm(H)x15.2mm(W) 21.4mm(D) 4/3" Optical Format |
27.75mm(H)x37.75mm(W) | 6.4mm(H)x5.12mm(W) 8.2mm(D) | 7.68mm(H)x9.6mm(W) |
| Frame Rate (Overclocked) | 17 fps at Full Resolution | 23.7 fps at Full Resolution | 94.4 fps at Full Resolution | 120 fps at Full Resolution |
| Optical Interface | F-Mount | M58 x0.75 | C-Mount | C-Mount |
| Digital Output | GigE Vision | GigE Vision | GigE Vision | Mini Camera-Link |
| Dimensions (without lens or mount) | 60mm(H)x60mm(W)x70.8mm(D) | 70mm(H)x70mm(W)x70mm(D) | 50mm(H)x50mm(W)x42.7mm(D) | 50mm(H)x50mm(W)x69.4mm(D) |
| Weight | 389g | 380g | 138g | 282g |
