TaperCamD-LCM Description：

Product Manual Datasheet Drawing

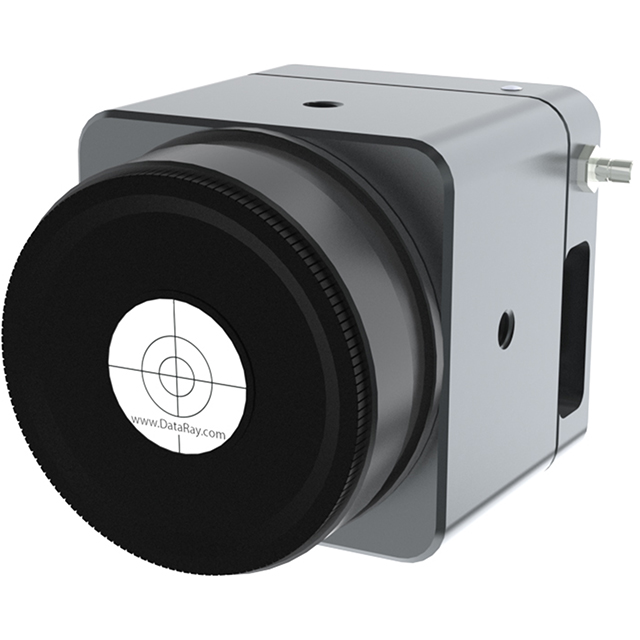

With a large 25 x 25 mm active area, 4.2 Mpixels, 12.5 x 12.5 μm (effective) pixels, optical and electronic triggering of a global shutter, and an SNR of 2500:1, the TaperCamD-LCM off ers the largest active sensor area on a USB-port powered laser beam profiling device. By combining the high signal-to-noise ratio and global shutter of the WinCamD-LCM with a high-quality fi ber optic taper, the TaperCamD-LCM off ers a very compact, easy-to-use solution for measuring a variety of large CW or pulsed lasers.

Key Features

355 to 1150 nm, standard CMOS detector

Up to 60+ FPS

4.2Mpixel, 2048 x 2048 pixels, 25 x 25 mm active area

12.5 μm (effective) pixels

2,500:1 Signal to RMS Noise

60 fps @ 512 x 512, 30 fps @ 1024 x 1024, 12 fps @ 2048 x 2048

Port-powered USB 3.0

HyperCal? – Dynamic noise and baseline correction software

Includes 2" NDXL ND filters

Global shutter with TTL trigger

Electronic auto-shutter, 85 μs to 2 sec (44 dB)

12-bit ADC

Isolated pulse triggering

Parallel capture on multiple cameras

Relative power level display

Example Applications

CW & pulsed laser profiling

Field servicing of lasers and laser-based systems

Optical assembly & instrument alignment

Beam wander & logging

Specification

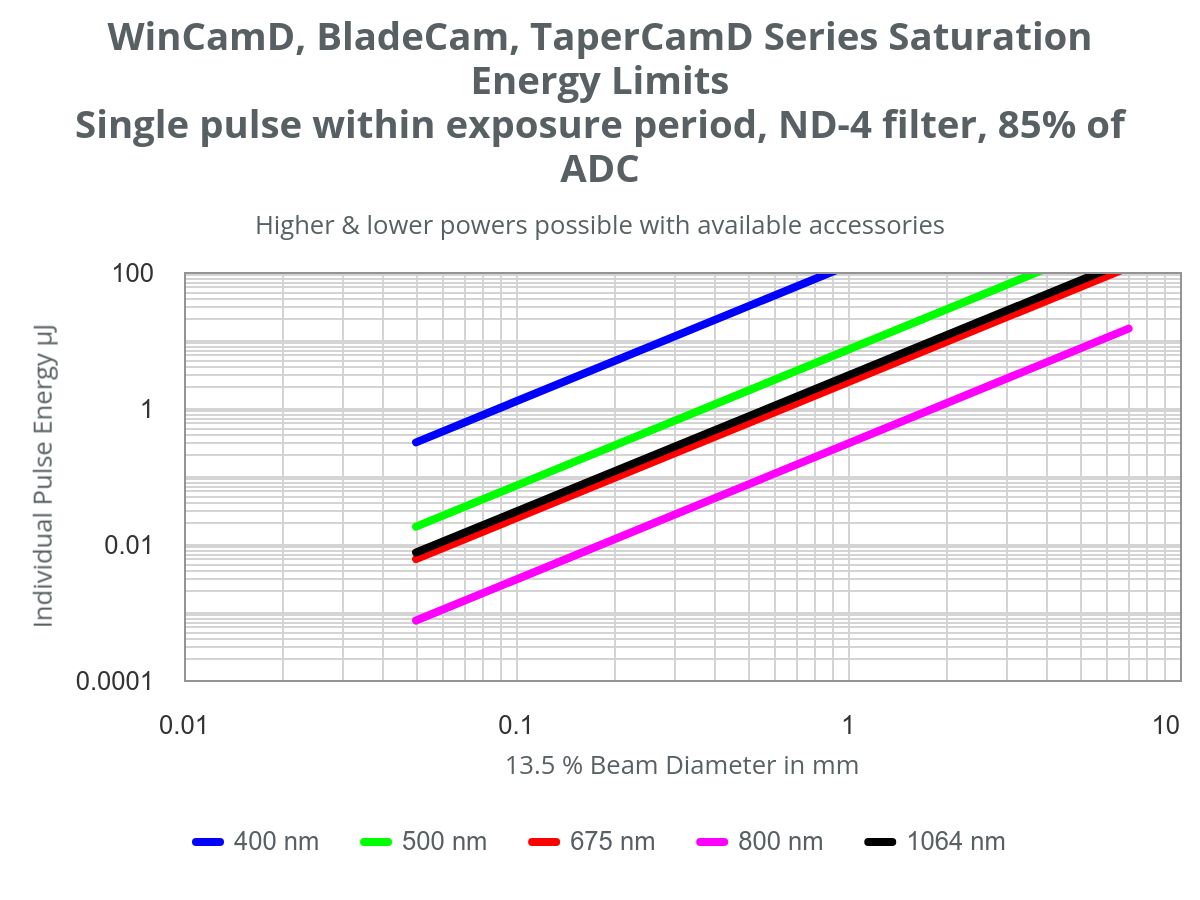

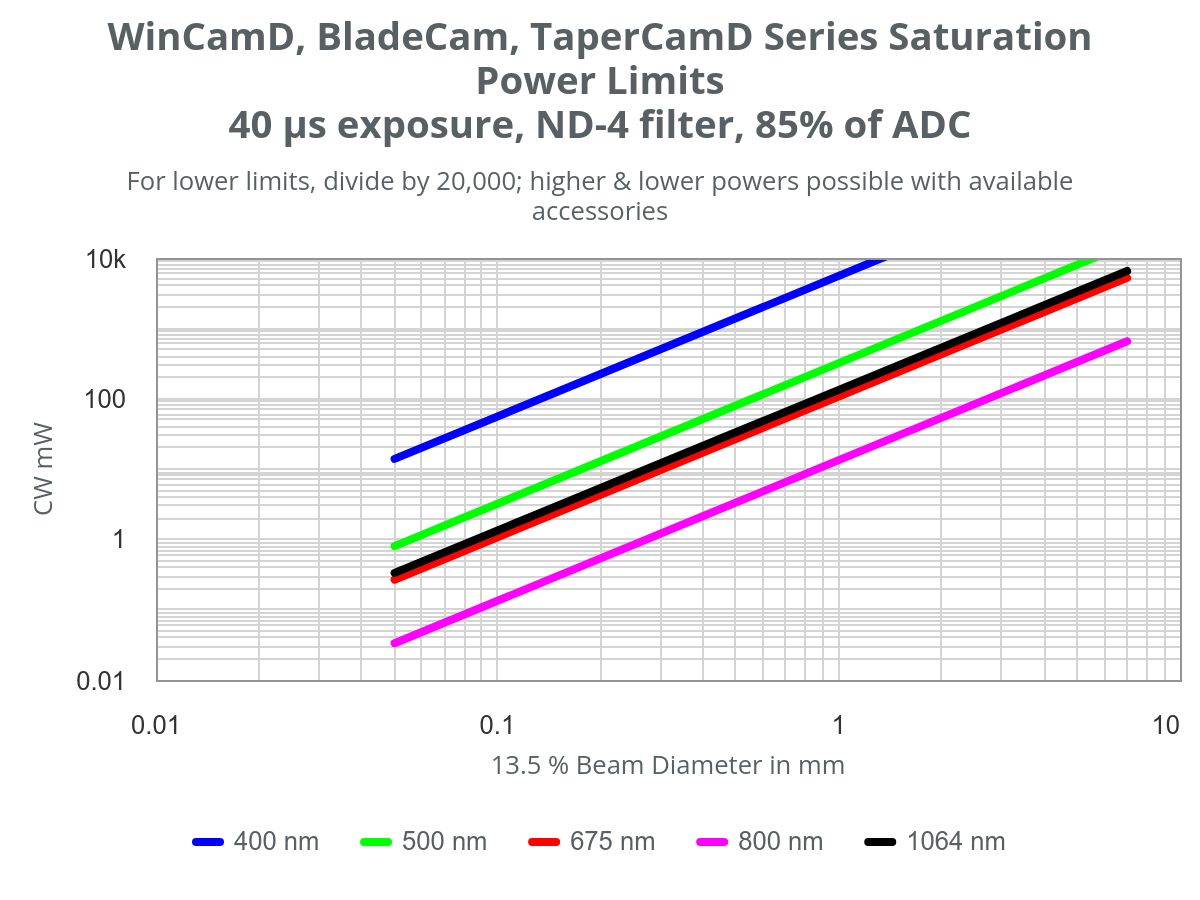

Chart
