Hydrogen, Binary Gas and Gas Mixtures Measurement
Features
Compact, lightweight and easy to install
Intuitive user interface
Tough IP55 housing
Low cost of ownership due to minimal maintenance
Measurement ranges from 0 to 5% up to 0...100 % and 50/80/90...100 %
Accuracy of better than ±1 % full scale
2 x 4...20 mA outputs and Modbus RTU over RS485 as standard

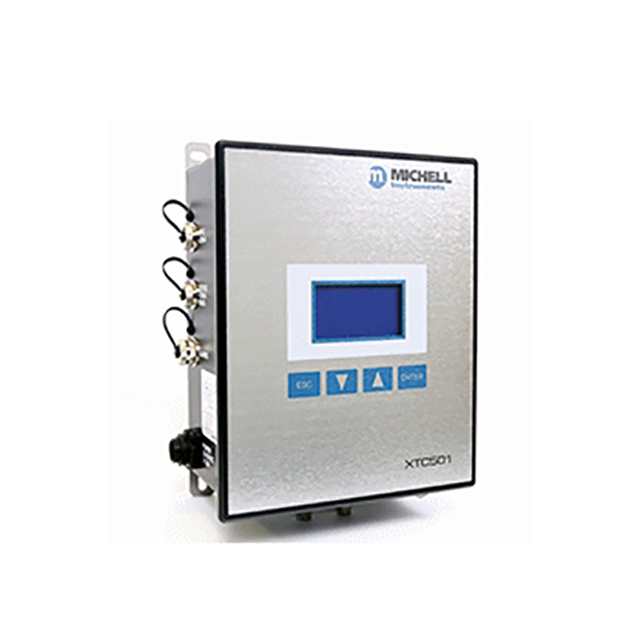

A lightweight and compact binary gas analyzer for measuring gas mixtures – such as air in argon or carbon dioxide in air. Suitable for installation in safe areas the XTC501 has a tough, IP55-rated housing. Available with an optional display and 4-button interface, the analyzer is easy to install, configure and operate.
Because the thermal conductivity sensor has no consumable parts and will last the lifetime of the analyzer, XTC501 has a competitively low lifetime cost of ownership and is simple to maintain.
Specifications
| Performance | |
| Measurement Technology | Thermal Conductivity sensor |
| Measured Gases | Air, Ar, CH4, CO2, H2, He, or N2 |
| Background Gas | Analyzer is calibrated in the background gas of the process. |
| Gas Requirements | Non-condensing sample with particles <3μm |
| Measurement Range | Selectable from 0...1 % up to 0...100 %, 50...100 % up to 99...100 % (see order code sheets) |
| Display Resolution |
0.0001 0.1 % for XTC ranges > 10 % |
| Display Type | Backlit LCD (not on 501-GP2 model) |
| Intrinsic Error (Accuracy) |
< ± % of range or ±0.05 % H2 or He, whichever is greater < ±2 % of range (for all other gas mixtures and ranges) |
| Response Time (T90) |
< 50 seconds for most gas combinations < 20 seconds H2 or He |
| Repeatability | ±0.2 % of range |
| Linearity | ±1 % of range |
| Zero Stability | ±0.5 % of range per month |
| Range Stability | ±0.5 % of range per month |
| Sample Flow Rate | 100...500 ml/min (0.2...1.27 scfh) |
| Sample Flow Effect (Calibrated at 300 ml/min) | < 1 % of range for flows within stated range |
| Sample Pressure | A fixed pressure of 0.75 to 1.5 Bar A (10 to 20 psi A) (unit must be calibrated at the same pressure as sample) |
| Maximum Safe Pressure | 2 barg (29 psig) |
| Sample Temperature | A constant temperature of 5 to 45 °C (+41...+113 °F) |
| Sample Cell Temperature | +50 °C (+122 °F) |
| Electrical Specifications | |
| Analog Inputs |
1 off mA input for an external sensor (can be displayed on the screen) 1 off mA input to act as an active compensation for the process conditions |
| Analog Outputs | 2 off 4...20 mA outputs (powered with 24V excitation voltage) |
| Output Ranges | Primary range is set to the calibrated range of the instrument. The second is user-selectable |
| Alarms | 2 off single pole changeover relays for concentration (250 V, 5 A max) |
| Datalogging | Digital communications can be used to log the output from the analyzer on an external device |
| Digital Communications | Modbus RTU over RS485 Protocol |
| Power Supply | 24 V DC; 1.0 A max |
| Operating Conditions | |
| Ambient Temperature | +5...+50 °C (+41 °F...+122 °F) |
| Mechanical Specifications | |
| Warm-Up Time | < 25 minutes (at 20 °C ambient) |
| Stabilization Time | 5 minutes |
| Wetted Materials | 316 stainless steel, borosilicate glass, platinum, (plus O-ring) |
| Dimensions (w x d x h) | 260 x 180 x 128 mm |
| Weight | Approx. 3 kg |
| O-Ring Materials | Viton |
| Gas Connection | 1/8” bulkhead standard |
| Ingress Protection | IP55 |
