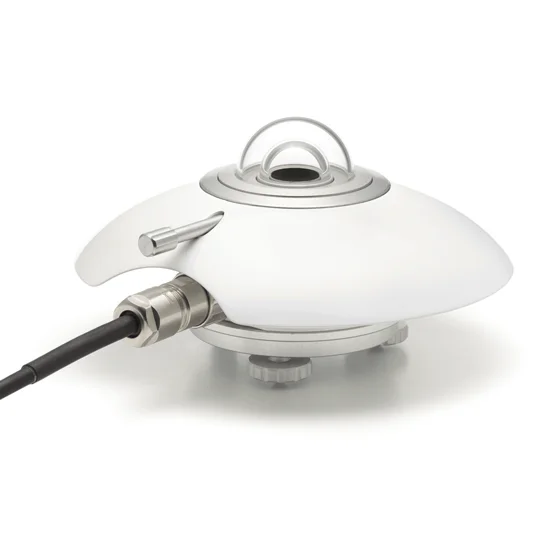

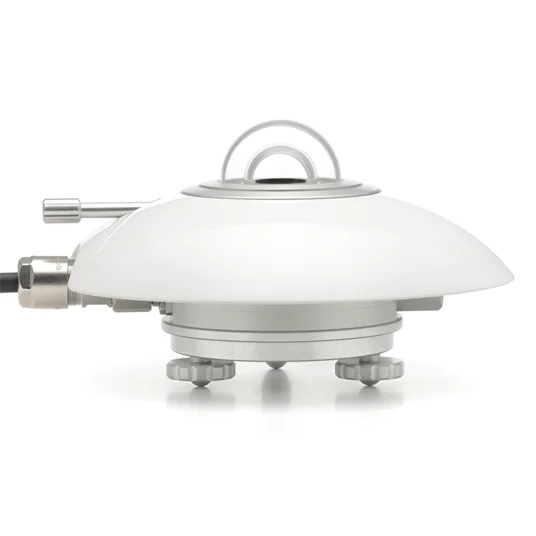

SR20-D2 Digital Pyranometer

Updated:2025-03-13

Brand: Hukseflux
Model：SR20-D2
Description: SR20-D2 is a solar radiation sensor of the highest category in the ISO 9060 classification system: secondary standard. SR20-D2 is designed for the solar PV industry, offering two types of commonly use
Data download

Feedback
WeChat

QQ

Online Service

Product Details

SR20-D2 Digital Pyranometer： User's Manual Datasheet

Best Pyranometer for the PV Industry

SR20-D2 is the most accurate digital secondary standard pyranometer available. Its benefits:

Digital Output: Easy Implementation & Servicing

Best-in-class temperature response, < ± 0.4 % (-30 to +50 °C), best “zero offset a” and best calibration uncertainty

Test certificates for temperature response and directional response included as required by ISO 9060

Re-calibration registers fully accessible to users

In order to improve overall measurement accuracy, Hukseflux effectively targeted two major sources of measurement uncertainty: calibration and “zero offset a”. In addition, SR20-D2 has a negligible temperature response. All are best in class. The temperature response of every individual instrument is tested and corrected onboard by the instrument electronics, using a second degree polynomial. SR20-D2’s low temperature dependence makes it the ideal candidate for use under very cold and very hot conditions.

SR20-D2 Pyranometer Design

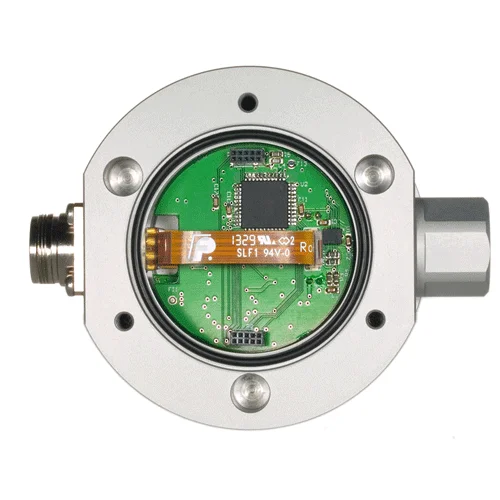

The pyranometer employs a state-of-the-art thermopile sensor with black coated surface, two domes and an anodised aluminium body. The connector, desiccant holder and sun screen fixation are very robust and designed for long term industrial use. SR20-D2 uses a high-end 24-bit A/D converter. All parts are specified for use across SR20-D2’s entire rated operating temperature range. SR20-D2 offers two types of outputs commonly used in the solar PV industry: digital output via Modbus RTU over 2-wire RS-485 and analogue 4-20 mA output (current loop).

Suggested Use

PV system performance monitoring

All networks with regular instrument exchange

Scientific meteorological observations

Reference instrument for comparison

Extreme climates (tropical / polar)

Areas of Application

Meteorology / surface energy flux measurement

Solar energy / PV system performance monitoring

SR20-D2 Digital Pyranometer Specifications：

Measurand	Hemispherical solar radiation
Application	PV monitoring commercial and utility scale, PV monitoring small sized, meteorology / climatology, other
ISO 9060:2018 classification	Spectrally flat Class A (secondary standard)
IEC 61724-1:2017 compliance	Class A (when used with VU01)
Calibration uncertainty	< 1.2 % (k = 2)
Zero offset a	5 W/m2 unventilated and 2.5 W/m2 ventilated
Calibration traceability	to WRR
Calibration registers	Accessible to users
Spectral range	285 to 3000 x 10?? m
Rated operating temperature range	-40 to +80 °C
Temperature response	<± 0.4 % (-30 to +50 °C)
Heater	no heating
Temperature response test of individual instrument	report included
Directional response test of individual instrument	report included
Standard cable length	5 m
Backwards compatibility	SR20-D1
Communication protocol	Modbus / over 2-wire RS-485
Transmission mode	RTU
Rated operating voltage range	5 to 30 VDC
Power consumption	< 75 x 10?3 W at 12 VDC
4-20 mA output	:
Output	irradiance in W/m2
Transmitted range of 4-20 mA output	0 to 1600 W/m2
Rated operating voltage range of 4-20 mA output	5.5 to 40 VDC
main supply	< 75 x 10?3 W
-4-20 mA current loop	< 40 x 10?3 W at 12 VDC
Options	Longer cable, in multiples of 5 metres
