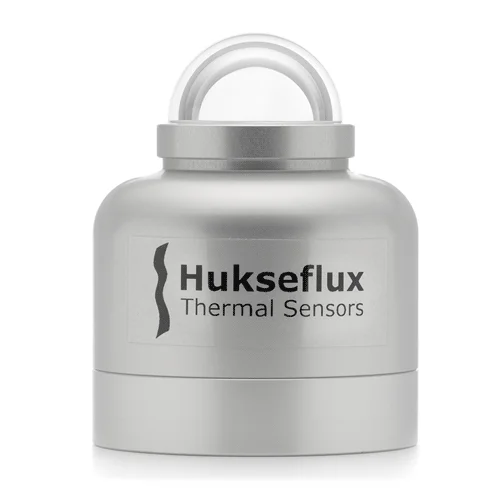

SR05-A1 Solar Radiation Sensor

Updated:2025-03-13

Brand: Hukseflux
Model：SR05-A1
Description: SR05 is the most affordable digital pyranometer meeting ISO 9060 second class requirements. It measures solar radiation received by a plane surface, in W/m2, from a 180 o field of view angle. SR05 is
Data download

Feedback
WeChat

QQ

Online Service

Product Details

SR05-A1 Solar Radiation Sensor： User's Manual Datasheet

SR05 series is the most affordable range of pyranometers meeting ISO 9060 second class requirements. SR05 measures solar radiation received by a plane surface, in W/m2, from a 180 ° field of view angle. It is ideal for general solar radiation measurements in (agro-)meteorological networks and PV monitoring. The pyranometer is easy to mount and install, in particular with SR05’s ball levelling mechanism. Various outputs are available, both digital and analogue, for ease of integration. Version SR05-D2A2 offers Modbus over TTL and 4-20 mA output.

SR05 pyranometer mounting and leveling

Optionally SR05 has a unique ball levelling mechanism and tube mount for easy mounting and levelling on a (non-)horizontal surface or tube. As is shown in the images.

Design and Output

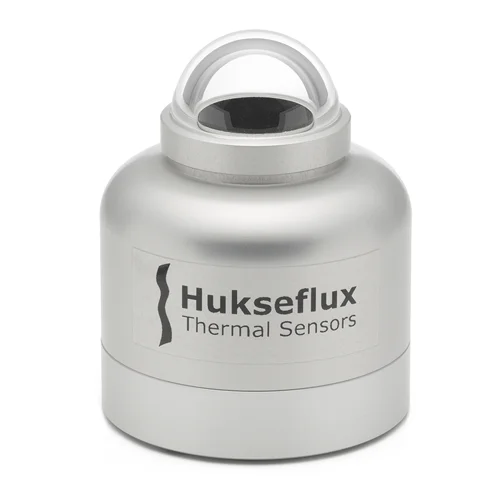

SR05 pyranometer employs a thermopile sensor with black coated surface, one dome and an anodised aluminium body with visible bubble level. SR05 has a variety of industry standard outputs, both digital and analogue:

SR05-D1A3: digital sensor with Modbus over RS-485 and analogue 0-1 V output

SR05-D2A2: digital sensor with Modbus over TTL and analogue 4–20 mA output

SR05-A1: analogue sensor with analogue millivolt output

Suggested Use

general solar radiation measurements

(agro-)meteorological networks

PV power plant monitoring

Areas of Application

Meteorology / surface energy flux measurement

Solar energy / PV system performance monitoring

SR05-A1 Solar Radiation Sensor Specifications：

Measurand	hemispherical solar radiation
ISO 9060:2018 classification	spectrally flat Class C (second class)
IEC 61724-1:2017 compliance	Class C
Application	PV monitoring small sized, meteorology / climatology, other
Heater	no
Calibration uncertainty	< 1.8 % (k = 2)
Calibration traceability	to WRR
Spectral range	285 to 3000 x 10?? m
Rated operating temperature range	-40 to +80 °C
Standard cable length	3 m
Rated operating voltage	passive sensor
Levelling	ball leveling (optional)
Output	:
Analogue output	millivolt
Sensitivity (nominal)	10 x 10?? V/(W/m2)
Version order codes	SR05-A1, SR05-A1-BL, SR05-A1-TMBL
Options	? Longer cable lengths (10, 20 metres) ? Extension cable with connector pair (10, 20 metres) ? With ball levelling (Specify article number LM01 when ordering) ? With ball levelling and tube mount (for tube diameters 25 to 40 mm) (TMBL01) ? OEM versions
