Renegade UV-VIS Datasheet Renegade VIS Datasheet
The Renegade spectrometer utilizes Torrent’s breakthrough technology in transmissive gratings by providing higher sensitivity compared to traditional reflective grating spectrometers on the market.
The grating is made on fused silica substrates to allow for optimal UV throughput and showcases our vertical integration as all components aside from the silicone detector are made in our fabrication house at Torrent’s headquarters.
The fiber-coupled compact design and manufacturability make the Renegade a versatile OEM solution for our customers.
Product Features
Environmentally Stable and Robust Design
Compact and Customizable
High Sensitivity — Proprietary UV Sensitive Transmissive Grating
Fiber-coupled
Low unit-to-unit variation
Compact, High-Performance, Customizable Spectrometers

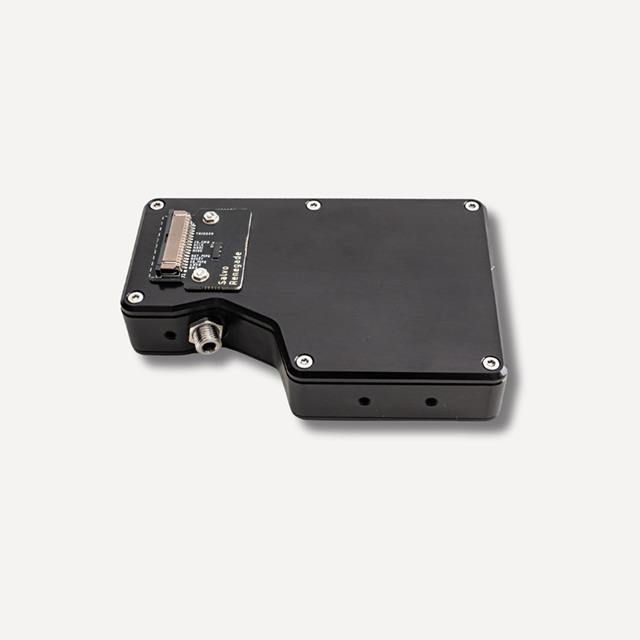

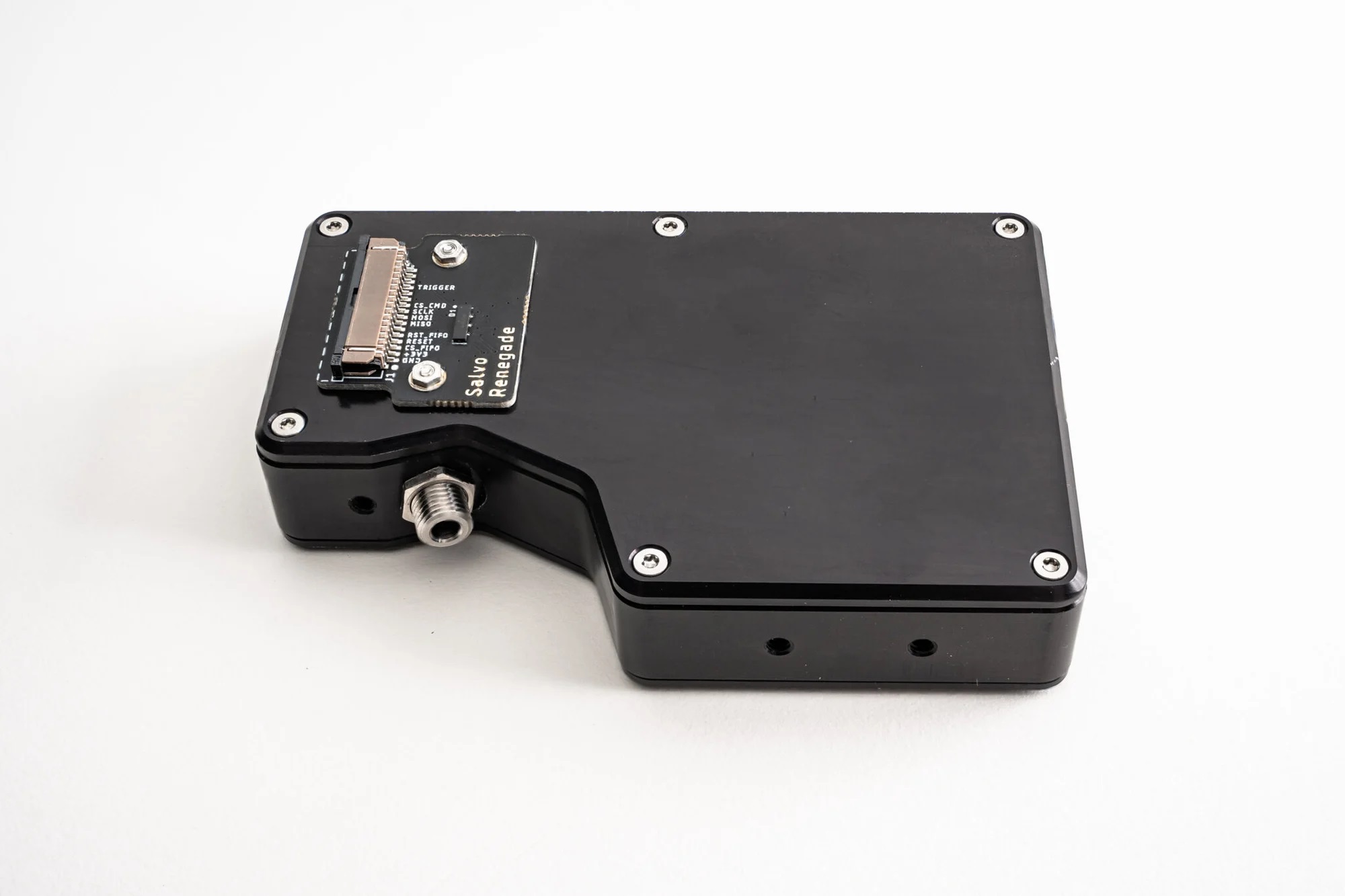

Renegade UV-VIS
Ideal for measurement of light in the range of 200nm to 400nm, for applications from DNA/RNA analysis, pharmaceutical, and food/beverage safety.

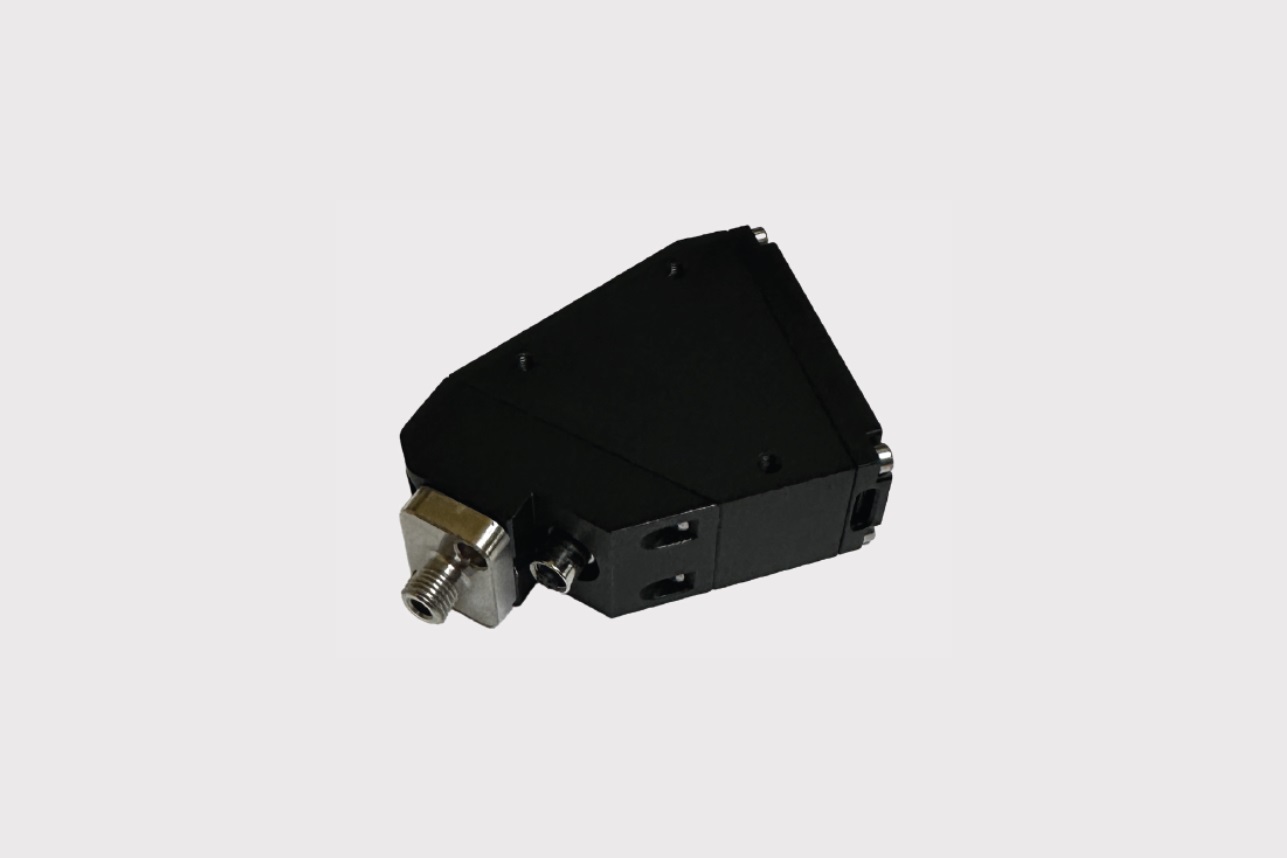

Renegade VIS
Visible spectroscopy and colorimetry measures the absorption of light in wavelengths of 380nm to 780nm, those visible to the human eye, and provides qualitative and quantitative data without human subjectivity.
Specifications
|
Renegade UV-VIS |
Renegade VIS | |
| Wavelength Range | 190nm to 850nm | 350nm to 790nm |
| Optical Resolution | 1nm FWHM | 1.2nm FWHM |
| Integration Time | 4ms to 10s | 200us to 10s |
| Dark Noise | < 2000 counts at 10s exposure | |
| Dynamic Range | 2200:1 | 5000:1 |
| Input Fiber Connector | SMA | SMA |
| Signal to Noise Ratio | 600:1 | 300:1 |
| Detector | Toshiba TCD1304DG | Hamamatsu-S15796 |
| Grating | 1250 lpmm Fused Silica transmission grating | 1250 lpmm Fused Silica transmission grating |
| Pixels | 3648 x 1 | 1024 |
| Entrance Split | 20um | 20um |
| Numerical Aperature | .25NA | 0.22NA |
| Enhanced Sensitivity Lens | D-Lens on CCD | |
| Stray Light | .1% or better | 0.012% (at+/- 10 x FWHM from peak) |
| Operating Temp. Range | Non-Condensing: 0°- 50°C | Non-condensing: 0° - 50° C |
| Dimensions | 90 x 60 x 18mm body, 90 x 60 x 22mm including connector | 65 x 45 x 20mm including connector |
| Weight | 145g | 100g |
| Vertical Resolution | 50,000 counts | 65,000 counts |
| Connectors | 16 pin 1mm pitch FFC | |
| Inputs/Outputs | SPI with 2 chip selects, accumulator reset, device reset, external trigger | SPI or USB, custom options available |
| Trigger Modes | Internal or external source, single, multiple accumulate, multiple average | Internal or external source, single, multiple accumulate, multiple average |
| Power Consumption | 3.3V 60mA | 3.3V 60mA |
