Coherent PowerMax-USB PM3Q Low Power Sensor

Updated:2025-03-13

Brand: Coherent
Model: PowerMax-USB PM3Q
Description: This PowerMax-USB PM3Q sensor is an amplified thermopile power sensor intended for measuring low power lasers down into the mW range. It includes a quartz window to more effectively eliminate thermal
Data download

Feedback
WeChat

QQ

Online Service

Product Details

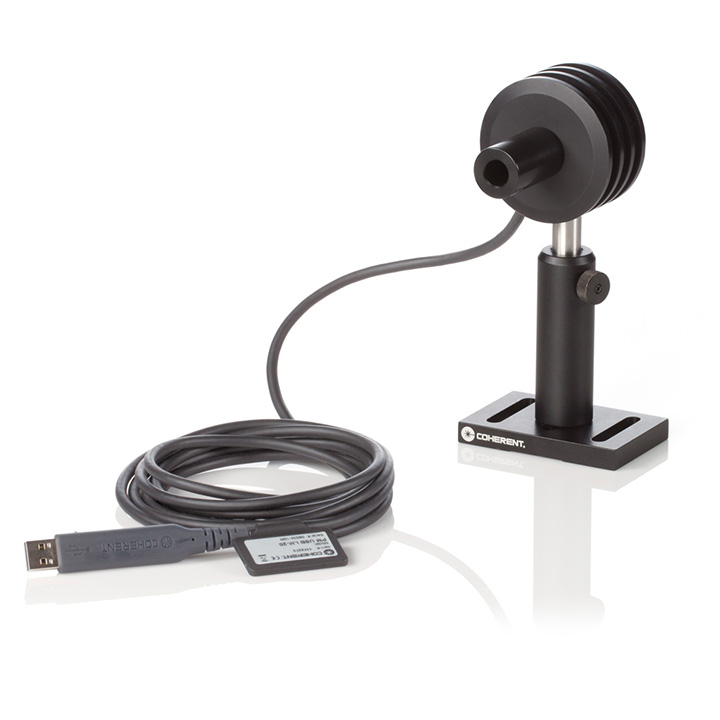

Coherent PowerMax-USB PM3Q Low Power Sensor Description：

User's Manual

This PowerMax-USB PM3Q sensor is an amplified thermopile power sensor intended for measuring low power lasers down into the mW range. It includes a quartz window to more effectively eliminate thermal background radiation. Note that the window limits the spectral range to 0.3 to 2.1 μm.

The sensor is terminated in a USB cable that interfaces directly to a PC. A DB25 model (PN 1098419) is available.

For a wider spectral range, the similar PowerMax-USB PM3 model (PN 1174263) does not include the quartz filter, enabling a spectral range of 0.19 to 11 μm.

Low power thermopile for measuring pulsed & CW lasers between 0.5 mW and 2W. Includes a quartz window to more effectively eliminate thermal background radiation. Direct USB interface.

Key Features:

500 μW to 2W range

10 mm diameter active area

0.3 to 2 μm spectral range

Quartz window

Convective air-cooled

Direct USB interface

ISO 17025 accredited
