Product Manual Datasheet

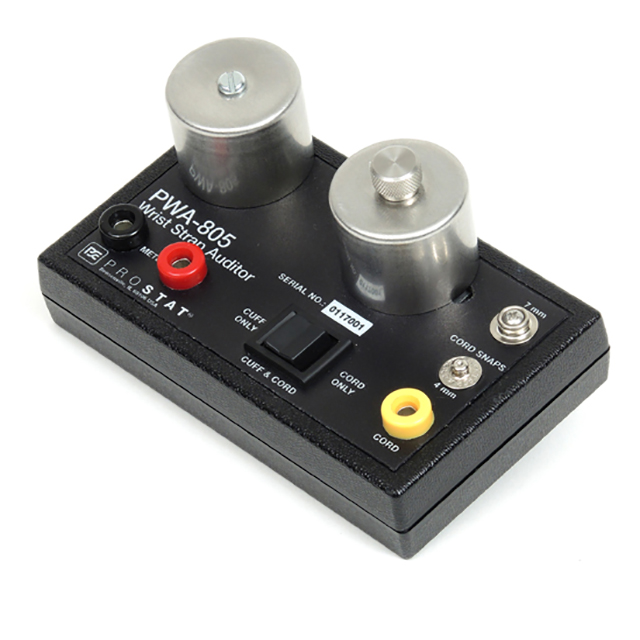

The PWA-805 will conveniently fit into your large Prostat Auditing Kit, or use at your workstation. The PWA-805 will work with the PRS-801 Resistance System, PRS-812 Resistance Meter, PAS-853B Wide Range Ohmmeter or any resistance measuring equipment.
Use the fixture to:
1、Specify the best wrist strap to be worn in your facility
2、Spot check wrist straps being used on the floor to confirm wrist strap checker reliability
3、Determine which part of the wrist strap is failing and replace that part only
Features
Measure the Interior of the Wrist Strap Cuff.
Measure the Exterior of the Wrist Strap Cuff.
Measure the Resistance of the Ground Cord Alone.
Measure the Resistance of the Whole Wrist Strap Assembly.
Measure the Resistance of Dual Wire Wrist Strap Band.
Technical Specifications
| FIXTURE CASE | 4.6" L x 2.75" W x 0.95" H inches |
| WRIST STRAP CYLINDERS |
Two (2) top mounted metal cylinders: 1 fixed, 1 adjustable for cuff size Cylinder Diameter: 1.25" x 1.0" H Adjustable cylinder equipped with knurled locking screw for positioning |
| CONTROLS |
Three position rocker switch: (1) Cuff Only [Resistance between Cylinders] (2) Cuff & Cord Assembly [Resistance from cord ground point to cuff cylinder]; (3) Cord Only [Resistance from cord ground point to cuff snap connections] |
| CONNECTIONS |
Megohmmeter: 2 banana receptacles for meter leads Cord Groundable Point: 1 banana receptacle 2 Cord Cuff Snaps: 1 each 7mm diameter, 1 each 4mm diameter |
| POWER | Not Applicable. The fixture is used in conjunction with the PRS-801 Resistance System and test leads or any resistance measuring device. |
| WEIGHT | 4.5 oz. |
