MSO Weather Sensor

Updated:2025-03-13

Brand:MetOne
Model:MSO
Description: The MSO is an integrated 5-parameter Weather Station. Wind Speed and Wind Direction are measured using conventional cup and vane techniques. All other measurements are housed in a multi-plate naturall
Data download

Feedback
WeChat

QQ

Online Service

Product Details

MSO Weather Sensor Introduction：

data sheet user's manual

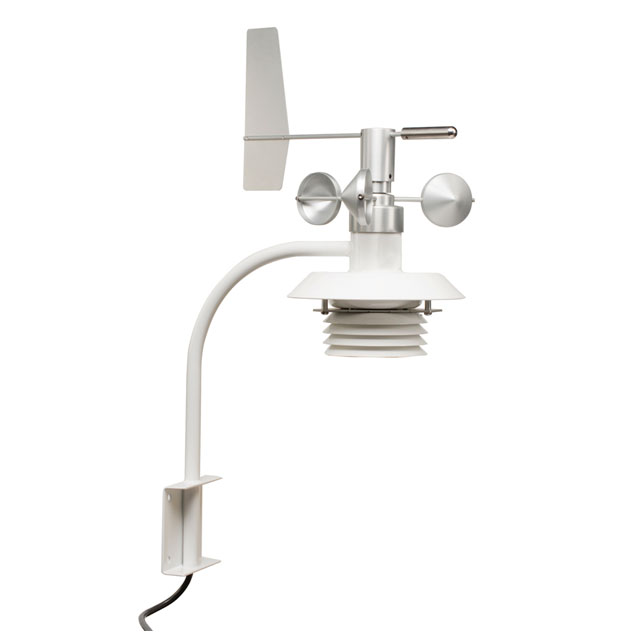

The MSO is an integrated 5-parameter Weather Station. Wind Speed and Wind Direction are measured using conventional cup and vane techniques. All other measurements are housed in a multi-plate naturally aspirated radiation shield to reduce solar radiation heating errors. The shield consists of a series of concentric white aluminum plates, which allow air to flow through the shield while blocking direct solar rays.

The temperature sensor is a platinum RTD. Relative humidity is a based on our accurate solid state sensor designed for continuous exposure to adverse climates. The barometric pressure sensor is a robust piezo-resistive device featuring high accuracy and long term stability.

The MSO serial output can include data from an optional tipping bucket rain gauge.

The digital serial data stream is output every second, or upon command by data system.

FEATURES：

Wind Speed and Direction
Rugged All Metal Housing
Temperature
SDI12, RS232, RS485 Outputs
Humidity
Met One 7500 Protocol
Barometric Pressure
Integrated Mount and 50ft Cable
Rain Option

ACCESSORY OPTIONS

10600 USB and power interface.
WMO compliant external tipping bucket rain gauge connects simply and allows for correct installation and siting per industry guidelines.
