MM70 The oil was sampled with a hand-held moisture and temperature gauge Introduction：

User 's ManualSelection table

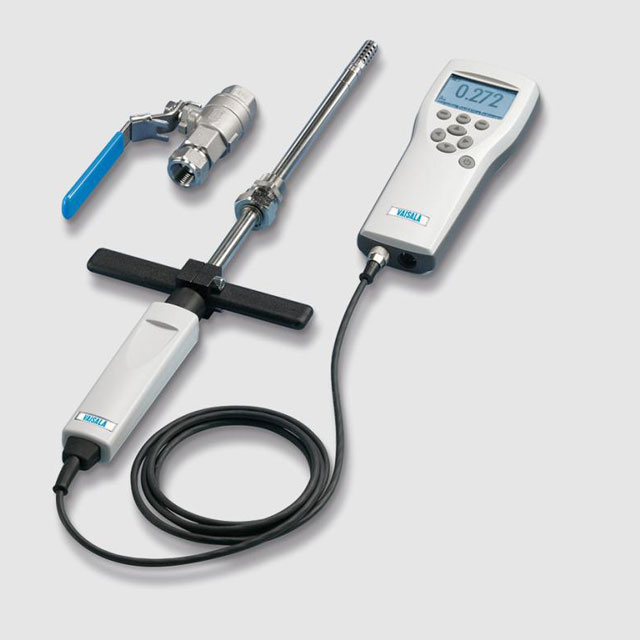

Vaisala's MM70 handheld Moisture in Oil tester with HUMICAP sensor ensures stable and reliable measurement results. The probe of the moisture meter can be inserted directly into the process line through the ball valve, eliminating the need to drain the system of oil. MM70 measures moisture in oil based on water activity (aw) and temperature (T). The water activity is a direct indicator of the danger of free water in the oil. The measurement is not affected by the type of oil, use time and temperature.

ppm value calculation：

The MM70's built-in mathematical model can represent the moisture content of mineral transformer oil in ppm. Customers can input up to three oil types into the handheld meter's memory.

Digital and graphic display：

The MM70 incorporates the latest generation of Vaisala HUMICAP sensors specifically designed to measure moisture in liquid hydrocarbon materials. The sensor's superior chemical tolerance ensures accuracy and reliability in the measuring range.

Vaisala HUMICAP technology：

The MM70 incorporates the latest generation of Vaisala HUMICAP sensors specifically designed to measure moisture in liquid hydrocarbon materials. The sensor's superior chemical tolerance ensures accuracy and reliability in the measuring range.

Quick calibration service - once a year：

Users can take the probe to the Vaisala Service Center for calibration or perform calibration themselves using the standard relative humidity calibration process.

Vaisala HUMICAP technology：

The MM70 can be connected to one or two probes simultaneously. This feature allows users to use the additional Vaisala dew point or relative humidity probe for other purposes. For example, the dew point probe is suitable for detecting moisture inside the tank after cleaning and drying.

Connect to a computer：

The optional MI70Windows® connection software is combined with a USB connection cable for transferring recorded and real-time measurement data from the MM70 to the computer.

characteristic：

1. Oil type, service life and temperature have no effect on the measurement

2. Through the ball valve can be detected online, no need to empty the oil

3. The structure is solid and reliable

4. Excellent pressure and temperature resistance

5. Data can be recorded or transmitted to a computer

6. The mature and reliable Vaisala HUMICAP® sensor has been used in oil measurement for more than 15 years

7. Multiple measurement range options

8. Compatible with Vysala fixed - mounted moisture in oil transmitters

9. No reference oil is required for calibration

10. NIST traceable calibration without reference to oil (including certificate)
