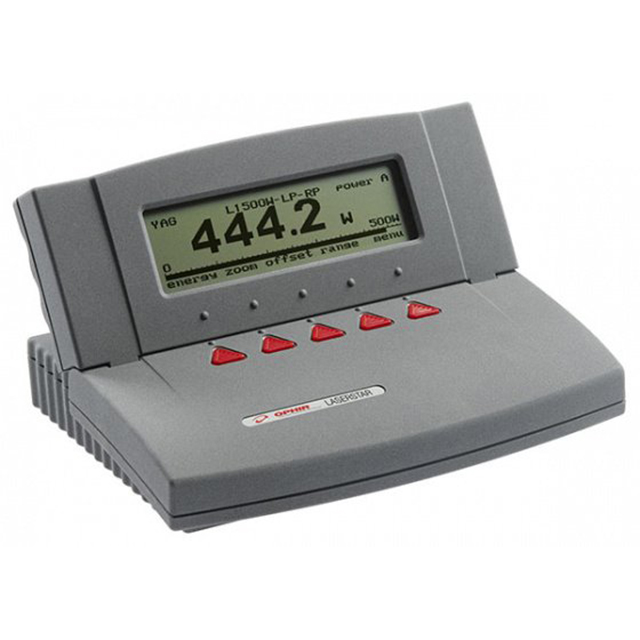

The LaserStar is a microprocessor based laser power meter which is menu driven with window based software. Two models are available: single and dual channel.
Compatible with all standard Ophir Thermopile, Pyroelectric, Photodiode and RP sensors.
Large LCD display.
Backlighting & rechargeable battery.
Screen graphics and statistics (std div. min, max).
Analog output.
Built in RS232 interface. Works with Ophir's StarCom32 application.
Log every data point at >1500Hz with pyroelectric sensors.
Non-volatile data storage up to 59,400 points.
Laser tuning screen and power log.
Audio sound for laser tuning and low battery.
LabVIEW software included.

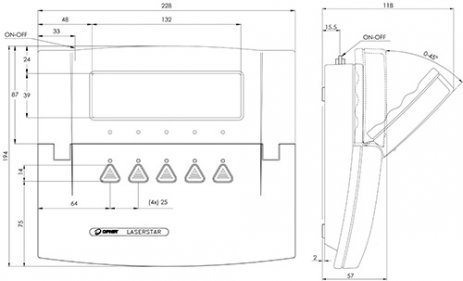

LaserStar Single Channel Drawing
| Thermal Sensors | Yes |
| Photodiode Sensors | Yes |
| Pyroelectric Sensors | Yes |
| BeamTrack Sensors | No |
| Statistics | Yes |
| Analog Out | 1V |
| Communication | RS232, GPIB |
| Trigger Input & Output | No |
| Ethernet | N/A |
| RS232 | 30Hz |
| GPIB | 1500Hz |
| USB | N/A |
| Bluetooth | N/A |
| On-Board Data Storage | 59.4K |
| Automation Interface | No |
| Labview VI's | Yes |
