L50(300)A-LP2-65 7Z02782 Thermal Power/Energy Laser Measurement Sensor

Updated:2025-03-13

Brand：Ophir
Model：L50(300)A-LP2-65
Description: The L50(300)A-LP2-65 is a thermal power/energy laser measurement sensor for high power density and long pulse lasers. This sensor also measures air coupled pulses from IPL dermatological sources. It i
Data download

Feedback
WeChat

QQ

Online Service

Product Details

L50(300)A-LP2-65 7Z02782 Thermal Power/Energy Laser Measurement Sensor Description：

The L50(300)A-LP2-65 is a thermal power/energy laser measurement sensor for high power density and long pulse lasers. This sensor also measures air coupled pulses from IPL dermatological sources. It is similar to the L50(300)A-IPL but does not have the window so is for air coupled sources only. It gives the most accurate measurements for air coupled sources. It has a 65mm aperture and can measure from 400mW to 50W continuously and to 300W intermittently. The sensor can measure energy from 200mJ to 1000J. Its high damage threshold LP2 absorber covers the spectral range from 0.25 to 2.2μm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

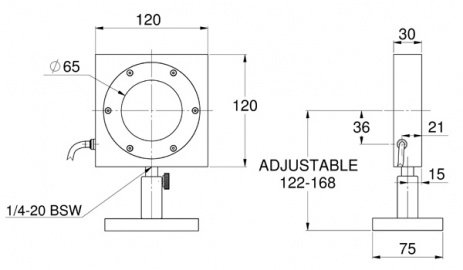

L50(300)A-LP2-65 7Z02782 Thermal Power/Energy Laser Measurement Sensor Drawing：

L50(300)A-LP2-65 Drawing

L50(300)A-LP2-65 7Z02782 Thermal Power/Energy Laser Measurement Sensor Specifications：

Absorber Type	LP2
Aperture	?65mm
Spectral Range	0.25-2.2μm
Power Range	400mW-300W
Energy Range	200mJ - 1000J
Dimensions	120 L x 120 W x 30 D (mm)
Max Pulse Energy	1000J
Max Average Power Density	17kW/cm2
Response Time	3 s
Max Energy Density(for <100ns)	0.1J/cm2
Max Energy Density(for 2ms)	130J/cm2
Max Average Power	300W
