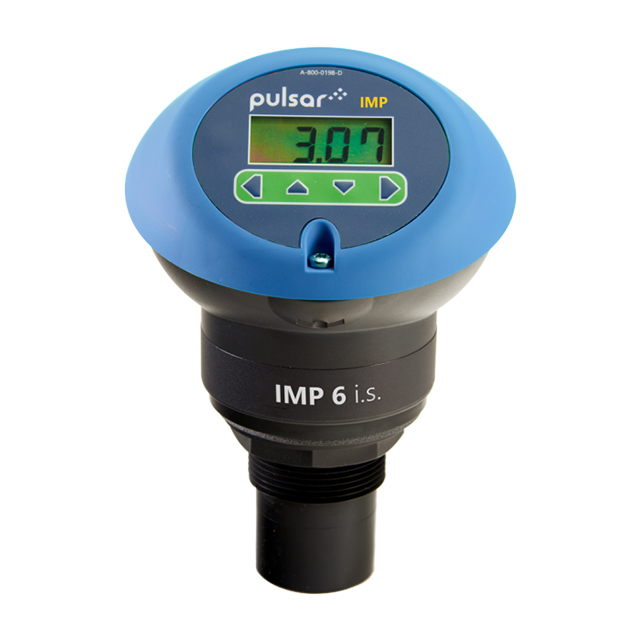

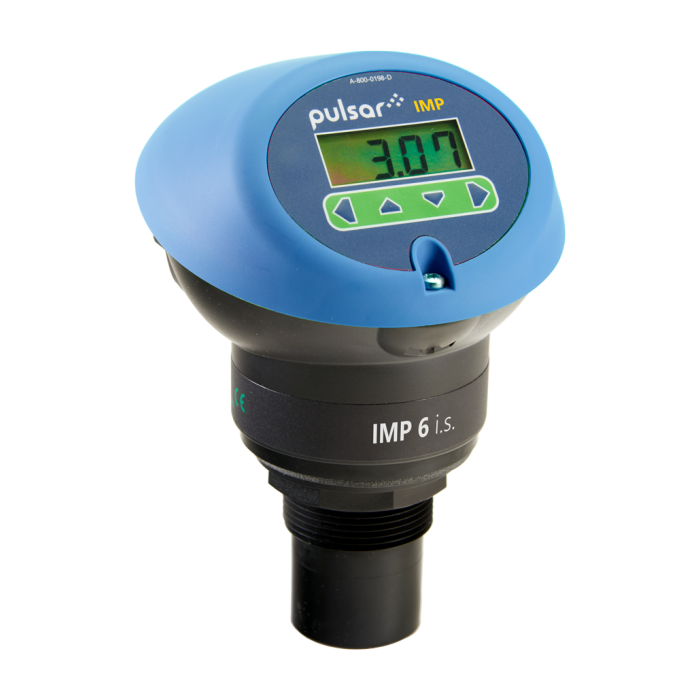

IMP I.S. ATEX Level Sensor

Updated:2025-03-13

Brand: Pulsar
Model: IMP I.S.
Description: The IMP range of level sensors feature a combined transducer and controller in one self-contained unit. All IMP units from Pulsar Measurement are non-contacting, accurate, and reliable level measureme
Data download

Feedback
WeChat

QQ

Online Service

Product Details

IMP I.S. ATEX Level Sensor Description：

User's Manual Datasheet

The IMP range of level sensors feature a combined transducer and controller in one self-contained unit. All IMP units from Pulsar Measurement are non-contacting, accurate, and reliable level measurement units. The IMP level sensors do not come into contact with the process, therefore there is no need to shut down or interrupt operations. Featuring specially designed digital echo processing technology, the IMP level measurement units provide simple, accurate, and reliable level measurement on their onboard LCD displays.

The IMP I.S. level sensor is certified to ATEX standard EEx ia IIC T4 and IECEx, and is available with wetted parts in PVDF, making it ideal for measuring in corrosive or aggressive applications. Available in three measurement sizes from 3 m to 10 m (9.8 ft to 32.8 ft) the unit is simple and straightforward to set up using the onboard keypad and menu-led programming system.

Features

Compact and self-contained level measurement

Simple menu led setup

High power and narrow beam angles

High specification ATEX

Up to 10 m (32.8 ft) range available

Specifications

Dimensions	186 mm H x 133 mm D (7.3 in H x 5.2 in D)
Cable Entry	2 x cable glands 4.5 mm to 10 mm (0.2 in to 0.4 in) (Torque to 2 NM)
Mounting	IMP3 - 3 m (9.8 ft) version: 1.5 in BSP/NPT IMP 6 - 6 m (19.7 ft) version: 1.5 in BSP/NPT IMP10 - 10 m (32.8 ft) version: 2 in BSP/NPT Suits BSP & NPT, parallel and tapered
Weight	Nominal 1 kg (2.2 lb)
Enclosure Protection	IP67
Temperature (Ambient)	-40 °C to +6 5 °C (-40 °F to +149 °F)
Temperature (Process)	-40 °C to +80 °C (-40 °F to +176 °F)
Input Voltage Range	11-30 V, 3.5-22mA
Accuracy	±0.25% or 6 mm (0.2 in); whichever is greater
Resolution	±0.1% or 2 mm (0.1 in); whichever is greater
4-20mA Outputs	Resolution 5 μA (both active and passive outputs)
Temperature Compensation	Via internal temperature sensor (0.5 °C (± 32.9 °F) accuracy). Level and volume conversion are installed allowing linearisation for tank shapes.
PC Interface	All parameters can be accessed and changed through PC Suite software. Echo traces may be viewed on-screen.
