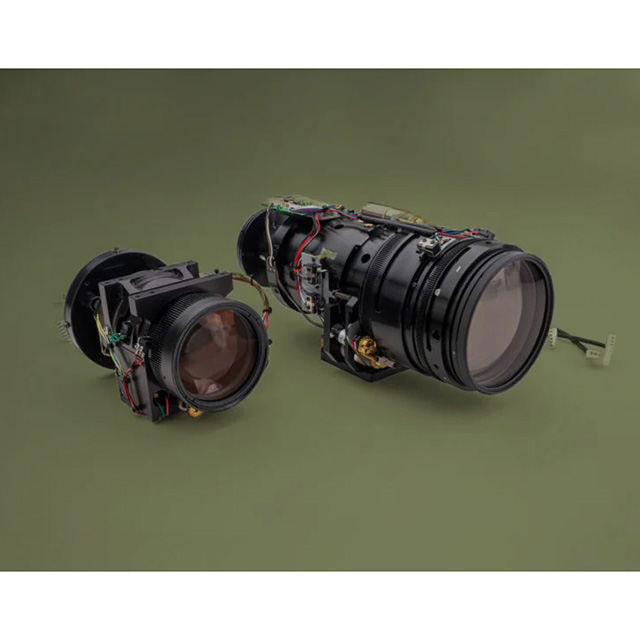

Graflex motorized zoom lenses zero in on performance, reliability, and durability for short, medium, and long-range systems, without sacrificing accuracy.
Superb Transmittance: Excellent boresight retention and image quality
Inherently Rugged: Performance-tested in debilitating conditions at every design stage; designed with all metal gears
Uniquely Customizable: Brackets, extreme temperature gear motors, and more.
Motorized Continuous Zoom & Modular Lenses
9x to 35x Zoom Ratio
High resolution, accuracy, and repeatability DRI out to 25km
Ruggedized
Withstands extreme vibration, shock, operating, and storage temperatures
Enhanced Thermal Stability
MLD-STD-810 tested, Analog Serial Data control
Retain Boresight Integrity
For accurate precision and alignment
Options & Upgrades
MTF testing, BCD, Electronics, Extreme Temperature Gear Motors
Properties
DIS-III Digital Lens Control System with Serial Interface and Ethernet
Fully Programmable ZHS-II Instrument Heat System
Wide-Temperature-Range Gear Motors
Open and Closed-Loop Electronics
Boresight Compensation Devices (BCD)
Optical Testing and Lens Analysis
CFE8 Carbon Fiber Lens Enclosures for Extreme Length and Low Weight
Custom Interface Brackets
Standard Environmental
Operating Temperature: The zoom lens will operate after having been exposed and thermally stabilized to any temperature within the range of -30°C to +70°C
Storage/Transit Temperature: The zoom lens will not be damaged after having been exposed and thermally stabilized to any temperature within the range of -40°C to +75°C
Shock: The zoom lens will not be damaged while subjected to three shocks of 7.5g for 11ms saw tooth on each axis, in both directions (18 pulses total)
Vibration: The zoom lens will operate and not suffer damage when subjected to axial vibration (not angular) or 0.1gRMS within the frequency range of 10-150 Hz
Standard Electrical, Control, and Feedback
| Iris: | 8-16Vdc @ 30mA, 0.4V to 1.0V (Peak to Peak) |
| Zoom/Focus: | 6-12Vdc @ 60mA |
| AI PCB | 3.0Vdc @ 21mA |
| Position: | Potentiometers at Zoom and Focus |
| Iris Control: | Auto |
| Control: | Analog |
Detail Data
| HFOV (Degrees) | A | B | C | D | E | |||||||
| Ratio | Part Number | Focal Length | Aperture | CCD | Wide | Tele | Length Max (mm) | Width (mm) | Height (mm) | Objective OD(mm) | Filter Thread | Weight (Kg) |
| 9X | 9X121 | 12.1 mm - 120.0 mm | f 1.80 | 1/2" | 29.6 | 3.06 | 127.6 | 70.00 | 79.50 | 65.00 | M62 x.75 | 0.575 |
| 1/3" | 22.4 | 2.29 | ||||||||||
| 9X182 | 18.2 mm - 180.0 mm | f 2.7 | 2/3" | 27.2 | 2.8 | 132.9 | 0.612 | |||||
| 1/2" | 19.9 | 2.04 | ||||||||||
| 1/3" | 15.00 | 1.53 | ||||||||||
| 9X242 | 24.2 mm - 240.0 mm | f 3.6 | 1" | 30.5 | 3.15 | 134.1 | 0.623 | |||||
| 2/3" | 20.6 | 2.1 | ||||||||||
| 1/2" | 15.1 | 1.23 | ||||||||||
| 1/3" | 11.3 | 1.15 | ||||||||||
| 12X | 12X150 | 15.0 mm - 180.0 mm | f 1.9 | 1" | 47.5 | 4.2 | 233.5 | 137.1 | 134.1 | 111.00 | M107x.75 | 3.11 |
| 2/3" | 32.7 | 2.8 | ||||||||||
| 1/2" | 24.1 | 2.04 | ||||||||||
| 1/3" | 18.2 | 1.53 | ||||||||||
| 12X225 | 22.5 mm - 270.00 mm | f 2.9 | 1" | 32.7 | 2.8 | 238.8 | 3.147 | |||||
| 2/3" | 22.1 | 1.87 | ||||||||||
| 1/2" | 16.2 | 1.36 | ||||||||||
| 1/3" | 12.2 | 1.02 | ||||||||||
| 12X300 | 30.0 mm - 360.0 mm | f 3.8 | 1" | 24.8 | 2.1 | 239.9 | 3.158 | |||||
| 2/3" | 16.7 | 1.4 | ||||||||||
| 1/2" | 12.2 | 1.02 | ||||||||||
| 1/3" | 9.2 | 0.76 | ||||||||||
| 20X | 20XA600 | 6.0 mm - 121.0 mm | f 1.6 | 2/3" | 72.5 | 4.16 | 126.58 | 70.10 | 79.50 | 65.10 | M62x.75 | 0.575 |
| 1/2" | 56.1 | 3.03 | ||||||||||
| 1/3" | 43.6 | 2.27 | ||||||||||
| 20XA900 | 9.0 mm - 180.0 mm | f 2.4 | 2/3" | 52.1 | 2.8 | 133.58 | 0.614 | |||||
| 1/2" | 29.1 | 2.04 | ||||||||||
| 1/3" | 29.9 | 1.53 | ||||||||||
| 20XA120 | 12.0 mm - 242.0 mm | f 3.2 | 2/3" | 40.3 | 2.08 | 134.76 | 0.612 | |||||
| 1/2" | 29.9 | 1.51 | ||||||||||
| 1/3" | 22.6 | 1.14 | ||||||||||
| 20X | 20XB150 | 15.0 mm - 300.0 mm | f 3.6 | 1/2" | 24.1 | 1.22 | 156.01 | 66.01 | 70.01 | 59.01 | M62 x .75 | 0.8 |
| 1/3" | 18.2 | 0.92 | ||||||||||
| 20XB300 | 30.0 mm - 600.0 mm | f 7.2 | 2/3" | 16.7 | 0.84 | 162.5 | 0.848 | |||||
| 1/2" | 12.2 | 0.61 | ||||||||||
| 1/3" | 9.1 | 0.46 | ||||||||||
| 28X | 28X940 | 9.4 mm - 255.0 mm | f 3.5 | 1/2" | 37.6 | 1.44 | 224.00 | 88.00 | 90.50 | 80.00 | M77x.75 | 1.44 |
| 1/3" | 28.6 | 1.08 | ||||||||||
| 28X141 | 14.1 mm - 382.50 mm | f 5.25 | 2/3" | 34.7 | 1.32 | 229.30 | 1.479 | |||||
| 1/2" | 25.6 | 0.96 | ||||||||||
| 1/3" | 19.3 | 0.72 | ||||||||||
| 28X189 | 18.9 mm - 510.00 mm | f 7.0 | 1" | 38.5 | 1.48 | 230.50 | 1.477 | |||||
| 2/3" | 26.2 | 0.99 | ||||||||||
| 1/2" | 19.2 | 0.72 | ||||||||||
| 1/3" | 14.5 | 0.54 | ||||||||||
| 30X | 30X102 | 10.2 mm - 310.0 mm | f 1.5 | 1/2" | 34.8 | 1.18 | 244.5 | 100.00 | 111.00 | 90.00 | M86x1 | 1.95 |
| 1/3" | 26.5 | 0.89 | ||||||||||
| 30X153 | 15.3 mm - 460.0 mm | f 2.3 | 2/3" | 32.1 | 1.1 | 251.5 | 1.989 | |||||
| 1/2" | 23.6 | 0.8 | ||||||||||
| 1/3" | 17.8 | 0.6 | ||||||||||
| 30X204 | 20.4 mm - 620.0 mm | f 3.0 | 1" | 35.8 | 1.22 | 255.9 | 1.987 | |||||
| 2/3" | 24.3 | 0.81 | ||||||||||
| 1/2" | 17.8 | 0.59 | ||||||||||
| 1/3" | 13.4 | 0.44 | ||||||||||
| 32X | 32XA156 | 15.6mm - 500.0mm | f3.0 | 1/2" | 23.4 | 0.74 | 247.6 | M95 x 1 | 2.46 | |||
| 1/3" | 17.5 | 0.55 | ||||||||||
| 32XA312 | 31.2mm - 1000.0mm | f6.0 | 2/3" | 16.1 | 0.51 | 254.1 | 2.471 | |||||
| 1/2" | 11.7 | 0.37 | ||||||||||
| 1/3" | 8.8 | 0.28 | ||||||||||
| 34X | 34X102 | 10.2 mm - 350.0 mm | f 1.5 | 1/2" | 54.8 | 1.05 | 247.6 | 100.00 | 111.00 | 90.00 | M86x1 | 1.95 |
| 1/3" | 26.5 | 0.8 | ||||||||||
| 34X153 | 15.3 mm - 520.0 mm | f 2.25 | 2/3" | 32.1 | 0.97 | 252.9 | 1.989 | |||||
| 1/2" | 23.6 | 0.7 | ||||||||||
| 1/3" | 17.8 | 0.53 | ||||||||||
| 34X204 | 20.4 mm - 700.0 mm | f 3.0 | 1" | 35.8 | 1.08 | 254.1 | 1.987 | |||||
| 2/3" | 24.3 | 0.72 | ||||||||||
| 1/2" | 17.8 | 0.52 | ||||||||||
| 1/3" | 13.4 | 0.39 | ||||||||||
| 59X | 59X130 | 13.0 mm - 775.0 mm | f 3.5 | 1/2" | 27.7 | 0.52 | 367.5 | 135.00 | 135.00 | 98mm | M107x.75 | 5.32 |
| 1/3" | 20.9 | 0.36 | ||||||||||
| 59X195 | 19.5 mm - 1162.0 mm | f 5.0 | 2/3" | 25.4 | 0.43 | 372.8 | 5.359 | |||||
| 1/2" | 18.6 | 0.32 | ||||||||||
| 1/3" | 14.00 | 0.24 | ||||||||||
| 59X260 | 26.0 mm - 1555.0 mm | f 7.0 | 1" | 28.40 | 0.49 | 374.01 | 5.357 | |||||
| 2/3" | 19.20 | 0.32 | ||||||||||
| 1/2" | 14.00 | 0.24 | ||||||||||
| 1/3" | 10.60 | 0.18 | ||||||||||
| 63X | 63X163 | 16.3 mm - 1028.0mm | f 2.8 | 1/2" | 22.2 | 0.36 | 381.7 | 127.01 | 127.01 | 120.01 | M116 x 1 | 4.7 |
| 1/3" | 16.7 | 0.27 | ||||||||||
| 63X244 | 24.5 mm - 1542.0 mm | f 4.2 | 2/3" | 20.4 | 0.33 | 387.01 | 4.737 | |||||
| 1/2" | 14.9 | 0.24 | ||||||||||
| 1/3" | 11.2 | 0.18 | ||||||||||
| 63X326 | 32.6 mm - 2056.0 mm | f 5.6 | 2/3" | 15.4 | 0.25 | 388.2 | 4.748 | |||||
| 1/2" | 11.21 | 0.18 | ||||||||||
| 1/3" | 8.42 | 0.14 |
