FPD-VIS-300 7Z02507 Fast Optical Detector

Updated:2025-03-13

Brand：Ophir
Model：FPD-VIS-300
Description: The FPD-VIS-300 is a fast optical detector for visualizing and measuring the temporal characteristics of laser beams in the spectral range from 320 nm to 1100 nm. It has a silicon PIN photodiode and i
Data download

Feedback
WeChat

QQ

Online Service

Product Details

FPD-VIS-300 7Z02507 Fast Optical Detector Description：

Datasheet Product Manual

The FPD-VIS-300 is a fast optical detector for visualizing and measuring the temporal characteristics of laser beams in the spectral range from 320 nm to 1100 nm. It has a silicon PIN photodiode and is designed to convert optical signals into electrical signals which are then measured with third party measurement instrumentation such as oscilloscopes or spectrum analyzers for measurement. The FPD-VIS-300 has a rise time of 300 psec. Its reverse bias voltage is provided by internal batteries.

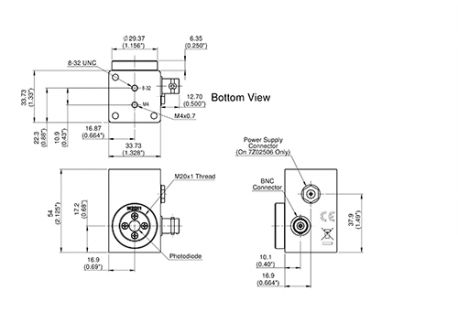

FPD-VIS-300 7Z02507 Fast Optical Detector Drawing：

FPD-VIS-300 Drawing

FPD-VIS-300 7Z02507 Fast Optical Detector Specifications：

Detector Type	Si
Rise Time/Fall Time	<0.3 nsec
Spectral Range	320-1100 nm
Active Area Diameter	0.4 mm
Noise Equivalent Power	<0.01 pW/√Hz
Dimensions	54 L x 34 W x 40 D (mm)
Detector Area	0.13 mm2
Wavelength of Peak Sensitivity	770 nm
Responsivity at Peak Wavelength	0.5 A/W
Responsivity (Irradiance) at Peak Wavelength	31 x 10?3 V/(W/cm2)
Bias Voltage	9 VDC
Bias Voltage Source	Batteries
Bandwidth	>1.2 GHz
Dark Current	<0.1 nA
Maximum Average Power Input	25 mW
Mounting (Tapped Holes)	8-32 & M4
Output Connector	BNC
Accessory Threads	M20x1
