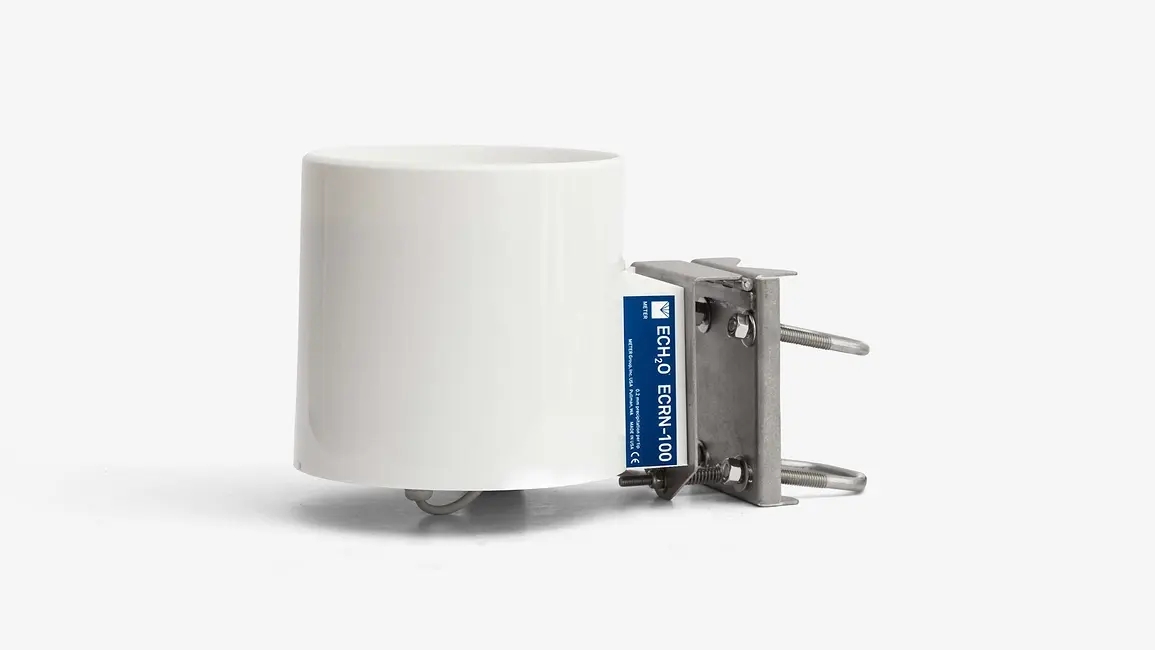

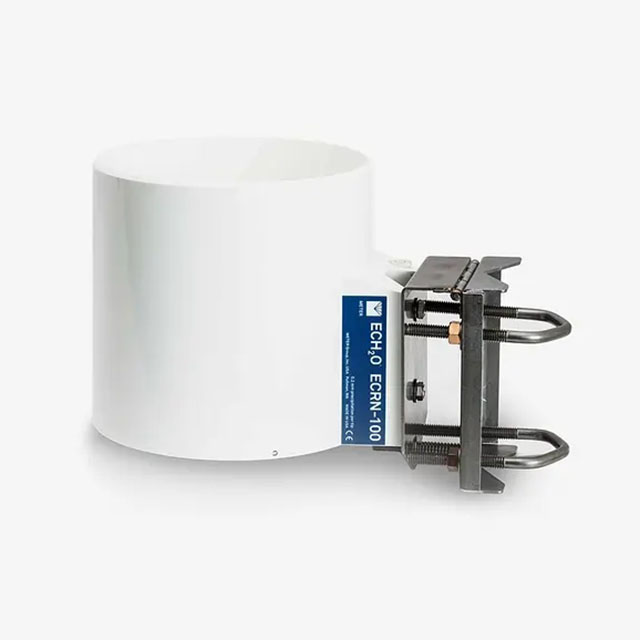

ECRN-100 Rain Gauge (High Resolution)

Updated:2025-03-13

Brand: METER
Model: ECRN-100
Description: Rain gauge for measuring precipitation and for use in scientific research.Two internal tipping spoons make this rain gauge very sensitive, with one tip per 0.2 mm of rain.Made of durable plastic that
Data download

Feedback
WeChat

QQ

Online Service

Product Details

ECRN-100 Rain Gauge (High Resolution) Description：

User's Manual

Research-grade rain gauge

Rain gauge for measuring precipitation and for use in scientific research. For all-in-one weather monitoring, see ATMOS 41。

Dual spoon mechanism for better resolution

Two internal tipping spoons make this rain gauge very sensitive, with one tip per 0.2 mm of rain.

Durable

Made of durable plastic that is UV, water, and frost-resistant.

ECRN-100 Rain Gauge (High Resolution) Specification：

Resolution	1 tip
Funnel collector diameter	16.0 cm
Height	16.0 cm
Volume per tip	4.02 ml/tip
Rainfall per tip	0.2 mm
Sensor type	Double-spoon tipping bucke
Case material	ABS
Operating environment	0 °C to 60 °C
Cable length	5 m
Cable connector types	3.5 mm "stereo" plug
Rain gauge dimensions	17 cm x 14.2 cm
Data logger compatibility (not exclusive)	METER EM50/EM60 series, ZL6 series, ProCheck, ZSC
Warranty	One year, parts and labor

ECRN-100 Rain Gauge (High Resolution) FAQ's：

1、How do I check the calibration and then recalibrate the ECRN-50 or ECRN-100 tipping bucket rain gauge?

The tipping bucket rain gauges have small stops that can be adjusted such that the bucket tips after the appropriate volume of water was collected in the bucket. Calibrate ECRN-50 when wet because a little water remains in the cup.

2、What is the maximum flow rate for the ECRN-100?

12 mm/minute

3、What is the volume per tip for the ECRN-100?

ECRN-100 volume per tip: 4.02 ml/tip

Rainfall per tip: 0.2 mm/tip
