User's Manual Datasheet

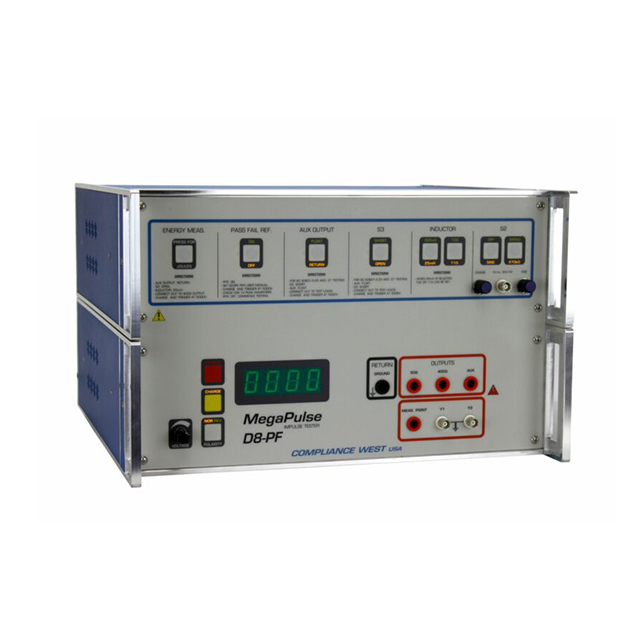

The most advanced medical surge tester available, the MegaPulse D8-PF is the latest iteration of the industry leading Defib-proof Tester from Compliance West. It adds the new Differential Mode Test shown in IEC 80601-2-26 and introduces our new touch controlled front panel to the legendary MegaPulse D5-PF defib proof tester. The MegaPulse D8-PF retains the direct energy readout and comprehensive list of included tests to the requirements of:
IEC 80601-2-26:2019/COR1:2021 Figure 201.101 Defibrillation-Proof Applied Parts (S/N 435193 and up).
IEC 60601-1:2005 (Issue 3) Figure 9 and 10 Defib-proof Differential- and Common-Mode Test (IEC 60601-1 Figure 50 in older versions).
IEC 60601-1:2006 Figure 11 Energy Reduction Test.
IEC 60601-2-4: 2010 Figure 201.110 Overload Test (optional).
IEC 60601-2-34 Issue 2 (optional).
IEC 60601-2-34 Issue 3 (included).
IEC 60601-2-49.
EC-13.
EC-53.
IEC 60601-2-25:2011.
IEC 60601-2-27:2011.
This is an IEC 60601 and IEC 80601 Defibrillation-proof tester. For the Energy Reduction test, joules consumed in the 100Ω resistor are immediately displayed after each pulse. The MegaPulse D8-PF tests protection against the effects of defibrillation (Common Mode, Differential Mode) and Energy reduction test (EC-13) and as noted in the Standards shown above. The MegaPulse D8-PF outputs a 360J Defib-proof test pulse per IEC 60601-1 for the Energy Reduction Test. It can also be used as a Defibrillator Lead Tester.
Features
Updated front panel with digital switches.
Digital output voltage knob on the front panel.
Integrated High Voltage on hold circuit.
Integrated Energy measurement.
Joules readout for the last pulse is displayed by pressing a button.
Integrated Y1-Y2 measuring circuit.
Built-in Pass/Fail reference circuit.
External interlock disables HV output and defeats test when circuit is open.
Long life capacitor rated for 2.5 million pulses.
USB TestMinder, computer control.
Auto-trigger via USB.
Front panel indicates internal HV and polarity.
Polarity button selector on the front panel.
Front panel switches and instructions for various test setups.
Microcontroller technologies.
Leads, manual and calibration certificate included.
One year calibration cycle.
Specifications
| TESTING CIRCUITRY | |
| Charge Voltage: | 5100V ±1%。 |
| Main Capacitance: | 32uF±5%。 |
| Inductances: | 500uH and 25mH ±5%。 |
| Main Resistance (R1): | 100Ω ±1% non-inductive. |
| Output Impedance: | 50Ω and 400Ω ±1% non-inductive. Optional 10Ω available. |
| Voltage Control: | Manually, by turning a knob in the front panel or via USB. |
| Polarity Control: | Positive and Negative. Alternating control available with USB. |
| Voltage Display: | 4 Digit LED Display. |
| Voltage Meter resolution: | 5V |
| Voltage Meter Accuracy: | ±1% |
| Duty Cycle |
20s between pulses, ±1% 100Ω resistor bank, up to 70 pulses. 12s between pulses, +1% <-5% 100Ω resistor bank, continuous duty |
| ENERGY MEASUREMENT | |
| Works only when: | 25mH inductor selected (in accordance with the energy reduction test). |
| Display Resolution: | 1 Joule. |
| Repeatability: | ± 2 Joules between pulses. |
| Reading: | From 3000V to 5100V only. |
| ELECTRICAL | |
| Line Voltage: |
120V AC，50/60Hz. 230V AC ±10%, 50 Hz ±1 Hz (CE for EU). |
| SAFETY | |
| Safety Interlock 2-pin terminal block on rear panel; shorted for operation. | |
| OUTPUTS – FRONT | |
|
50Ω, 400Ω, AUX, MEAS. POINT: High Voltage insulated rigid 4mm socket – Red. RETURN: High Voltage insulated rigid 4mm socket – Black. Y1, Y2, SINE WAVE: BNC. |
|
| OUTPUTS – REAR | |
| ENERGY MEASUREMENT: | High Voltage insulated rigid 4mm socket – Red. |
| GROUND: | High Voltage insulated rigid 4mm socket – Black. |
| TESTMNINDER: | DB9 Female. |
| Inlet Module: | Inlet module with fuse and power switch combination. |
