Product Manual Datasheet
Manual hydrocarbon and water dew-point tester for natural gas
Features
Fundamental cooled-/chilled-mirror dew-point measurement principle
High-definition color LC display
Visual identification of both water and hydrocarbon dew point
Automatic mirror cooling rate control according to ISO 6327 and ASTM D1142 test methods for natural-gas dew-point measurements
Self-contained, rechargeable battery powered
Exd certified IECEx ATEX UKCA Zone 1 IIB+H2 T3
100 barg operating pressure rating
Greater than 60?C measurement depression range (up to 100 barg pressure)
Better than +/-0.5?C accuracy of mirror surface measurement

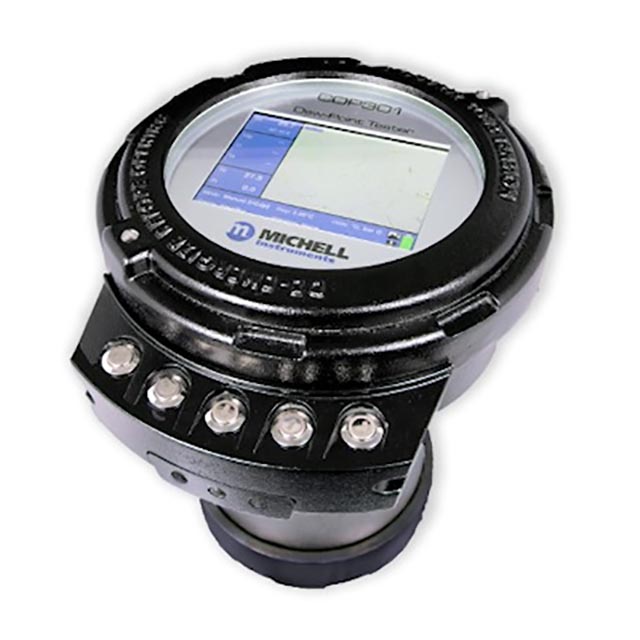

CDP301 portable HCDP tester uses the chilled mirror principle for both hydrocarbon and water dew point measurements and is designed to follow the requirements as described in ASTM D1142. Based on the visual manual method of observing the formation of condensate, the CDP301 uses a high-definition visual image to assist users and allows image capture and reliable logging of measurements for later review.
Specifications
| Hydrocarbon & Water Dew-Point Measurement | |
| Measuring Technique | Chilled mirror |
| Sensor Cooling | Automated cooling ramp rate selectable according to ASTM D1142 or ISO6327 measurement practice |
| Maximum Range | Depression range up to Δ T >65°C |
| Accuracy | ±0.5°C |
| Resolution | 0.1°C, 0.1°F |
| Sample Flow | 0.25...0.5 Nl/min |
| Pressure Measurements HCDP & WDP | |
| Units | MPa, barg, psig |
| Resolution | 0.1 MPa, 0.1 barg, 1 psig |
| Accuracy | ±0.25%FS |
| Dew-Point Tester | |
| Operating pressure | Up to 100 barg |
| Sample supply pressure | 20...100 barg (290...1450 psig) |
| Enclosure | Cast LM25 Alloy IP64 (NEMA4 equivalent) |
| Gas connections | ?”NPT |
| Operating environment | -30°C...+50°C max 95%rh |
| Power Supply | Rechargeable Li-ion battery, up to 8 hours life from full charge |
| Weight | 8 kg |
| Display & user interface | High-definition 5.7” full-color display, operated by 5 push buttons |
| Logging/Image capture | 2GB onboard data storage |
| Hazardous Area Certification |
ATEX/UKCA: II 2 G Ex db ia IIB+H2 T3 Gb (Tamb -30°C...+50°C) IECEx: Ex db ia IIB+H2 T3 Gb (Tamb -30°C...+50°C) cQPSus: Class I, Division 1, Gr BCD T3 (Tamb -25°C...+50°C) Class I, Zone 1 AEx db ia IIB+H2 T3 Gb (Tamb -30°C...+50°C) Ex db ia IIB+H2 T3 Gb (Tamb -30°C...+50°C) |
| Data transfer | USB Standard B connector for log/image transfer (safe area only) |
| Mounting | 5/8 inch 11 UNC thread suitable for Tripod mount. Optional bench top mount. |
Suitable Applications
