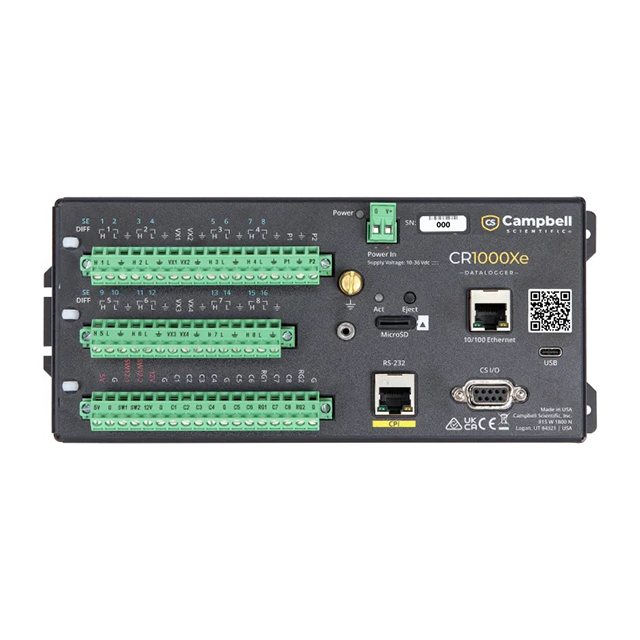

Campbell CR1000Xe Measurement and Control Datalogger Description：

Datasheet Specifications User's Manual Product Comparison of CR1000X and CR1000Xe

The CR1000Xe provides measurement and control for a wide variety of applications. Its reliability and ruggedness make it an excellent choice for remote environmental applications including stations for hydrology and meteorology (HydroMet), solar resource assessment and monitoring (SRA/SRM), dams and mines (geotech), and broad research objectives for environmental systems.

The CR1000Xe is a low-powered device that measures analog and digital sensors, processes and stores measurements, and adapts to any communications link. It stores data and programs in non-volatile flash memory. The onboard programming language—common to all Campbell Scientific data loggers—allows users to create solutions perfectly tailored to the application.

The CR1000Xe electronics are shielded from radio frequency by a unique, sealed, stainless-steel canister. It includes a low-drift, battery-backed clock that can be updated by NTP, GPS, and Campbell Scientific's PakBus. The canister and wiring panel seal together through stainless-steel connectors. The CPI and Ethernet pins are gold coated to resist corrosion. The CR1000Xe is compatible with 12 V- and 24 V-nominal systems. The data logger's wiring panel regulates 12 V outputs and includes two switchable 12 V outputs on removable terminal blocks and a switchable 12 V output on CS I/O.®

Benefits and Features

Operates in extreme environments with a standard operating range of -40° to +70°C and an extended operating range of -55° to +85°C

Connects directly to a computer's USB port

Captures quickly changing data values with fast analog measurement capabilities (300+ Hz)

Differentiates even slight changes in data values with higher-resolution measurements (24 bit Adc)

Includes two non-isolated current input channels for directly connecting sensors with 0-to-20 mA or 4-to-20 mA current outputs

Contains an onboard CPI port for hosting Campbell Scientific high-speed sensors and distributed modules (such as the GRANITE? Series)

Directly connects to Ethernet

Includes microSD card drive for extended memory requirements

Provides simple serial sensor integration and measurement with SDI-12, RS-232, RS-422, and/or RS-485

Supports full PakBus networking

Includes embedded web page for direct connection via web browser

Offers a broad input voltage range of 10 to 36 Vdc

Provides regulated 12 Vdc power output

Controls CS I/O power to external modems
